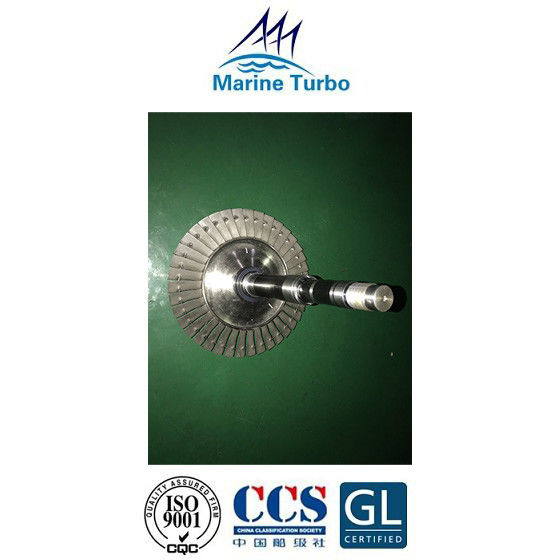

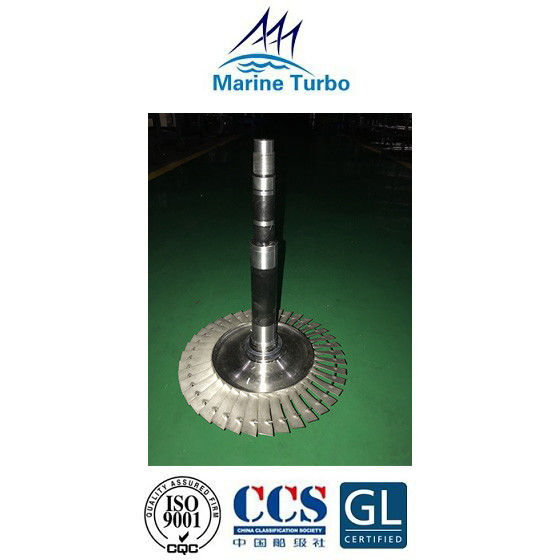

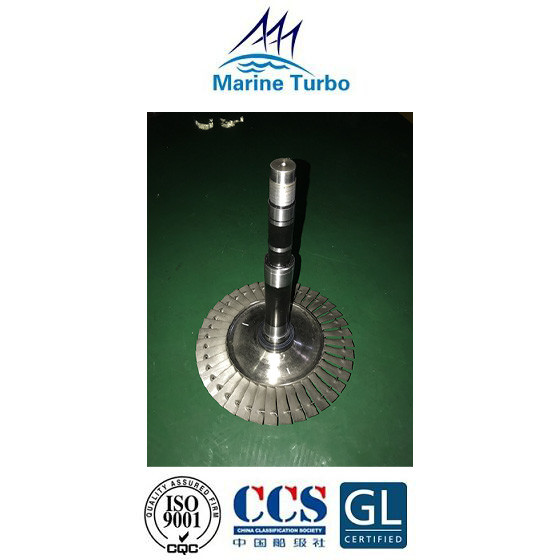

Model: | T- TPL65-bladenas | Productnaam: | Turbocompressor blade as, rotor as, turbine as, Marine turbo blade as |
---|---|---|---|
Type: | Turbocompressor met uitlaatgas | Brandstof: | Diesel, brandstof, zware stookolie |
Typ van turbine: | Axiële turbine | Drukverhouding: | 4.2-5.0 |
T- TPL-A: | Viertakt | Ruis: | lage geluidsemissie |
Markeren: | turbine-as,scheepsturbocompressorsets,T- turbocompressorrotoras |
De T-TPL-A-turbocompressor is bestemd voor grote dieselmotoren en gasmotoren met een vermogen van 2500 kW tot 12 kW.500 kW.
T-TPL-A-serie | Gewicht (kg) |
T-TPL65 | 1230 |
T-TPL69 | 1780 |
T-TPL73 | 3070 |
T-TPL77 | 4840 |
De marine turbocompressor, ook bekend als uitlaatgasturbocompressor, is de belangrijkste uitrusting in het aandrijfsysteem van de dieselmotor.Het bestaat uit een eenfasige uitlaatgasturbine en een centrifugecompressorDeze zijn op dezelfde as gemonteerd om het bewegende deel van de marine turbocompressor/uitlaatgas turbocompressor te vormen - de rotor. The function of the marine turbocharger/exhaust gas turbocharger is to use the diesel exhaust energy to drive the turbine to drive the compressor on the coaxial to increase the air pressure into the cylinderDe uitlaatturbocompressor verdubbelt ongeveer het vermogen van de dieselmotor, maar het gewicht wordt slechts met 10% verhoogd.
